EVO-100.4

4 Channel Power Amplifier, 100 Watt
EVO-100.4
EVO-100.4
EVO-100.4

EVO-100.4

4 Channel Power Amplifier, 100 Watt

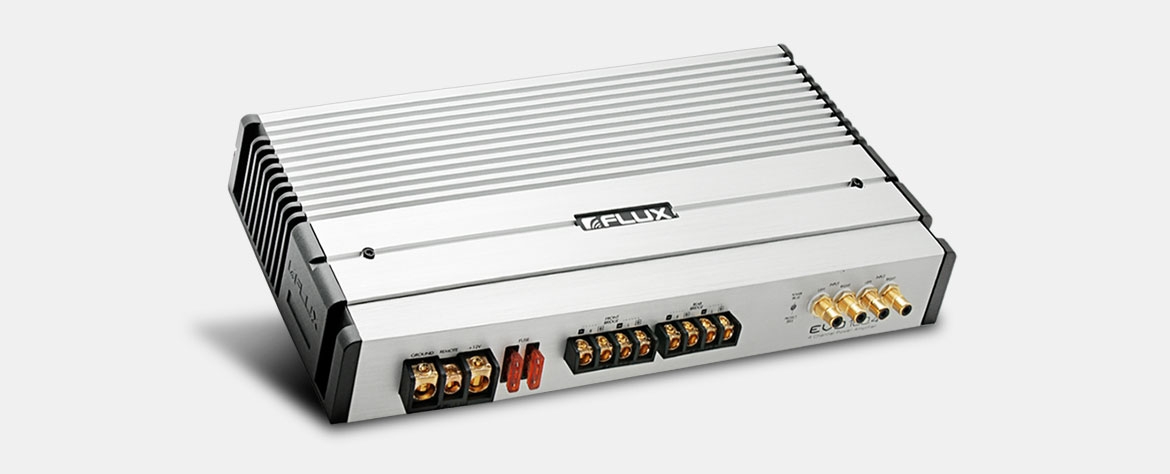

EVO amplifier is a class A/B power amplifier designed for car audio enthusiasts, has 4 channel output channels to drive speakers with 100 watts of power, and can loads up to 1 Ohm stereo or 2 ohm mono.

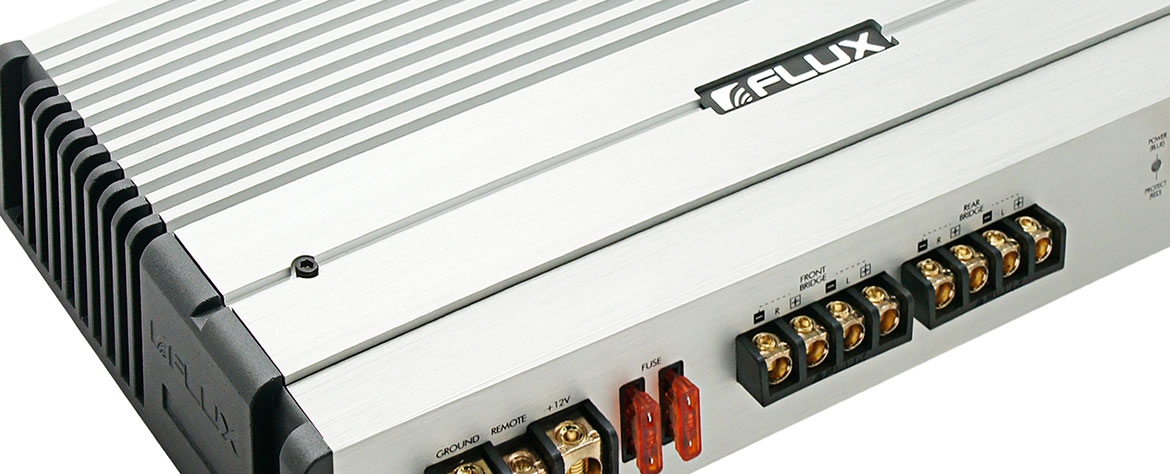

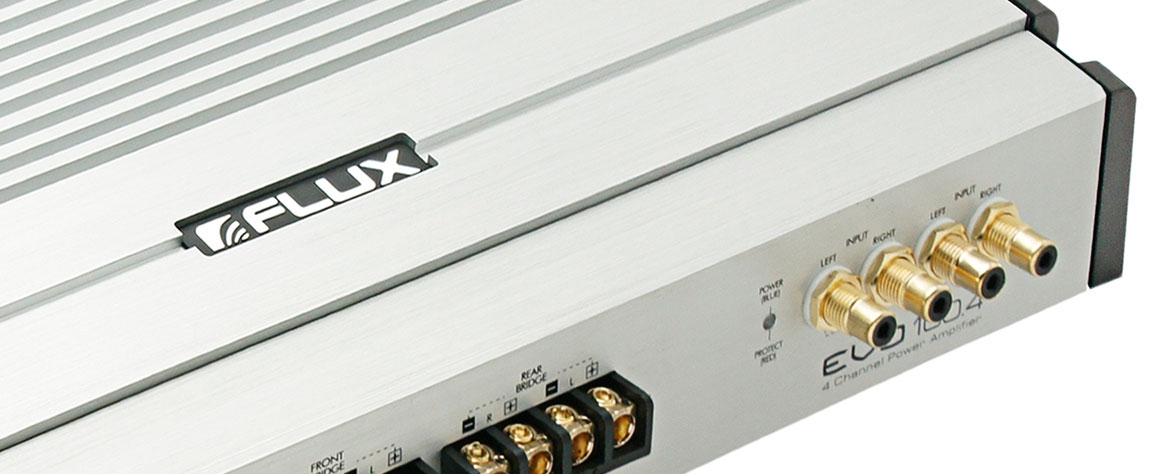

The EVO amplifier series features a silver aluminum casing/body with a massive heatsink, and the connector terminals are 24K "Gold Plated" separated terminals. Flux Evo amplifiers provide the pleasure of listening to quality music with accurate details, thick and powerful.

  • 4 channel class AB amplifier full mosfet
  • 1 ohm stable output
  • High power, more controllable and superb sound quality
  • Built upon high grade component
  • Pure 24K gold plated terminal
  • Massive integrated heatsink for better cooling
  • High bias capability
  • 1000w RMS maximum power handling
  • Crossover with switchable high pass & low pass filter

SPECIFICATION

Rated Power Output
100 W x 4 Channel @4ohm, 200W x 4 Channel @ 2ohm.
Bridge Mono
@4ohm -200W / @2ohm -400W
Freq. Response
10-20 Khz
Fuse Rating
40A x 2
Low Pass Crossover
40-400 Hz
High Pass Crossover
40-400 Hz
Size
354 (L) x 52 (H) x 178 (W) mm
