NEO-75.4

4 Channel Power Amplifier
NEO-75.4
NEO-75.4
NEO-75.4
NEO-75.4

NEO-75.4

4 Channel Power Amplifier

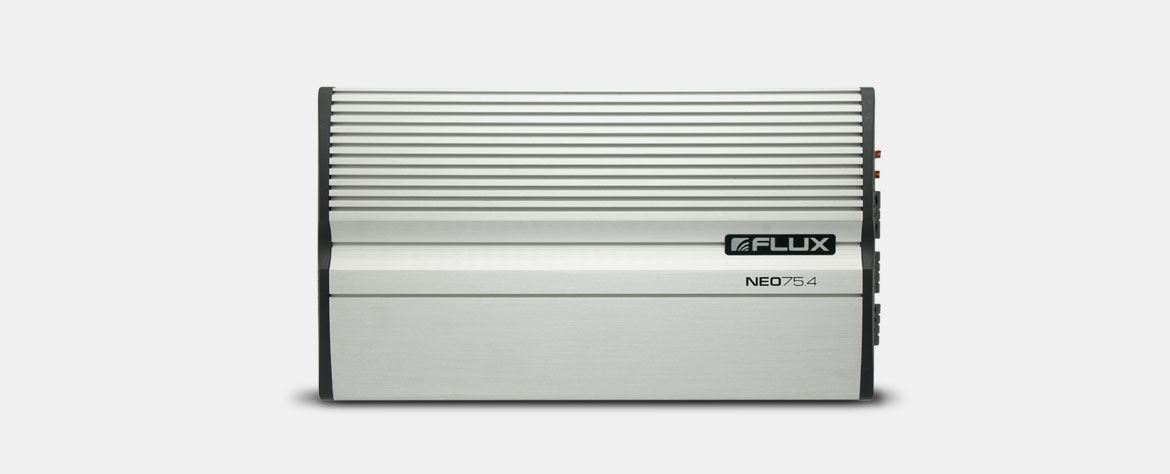

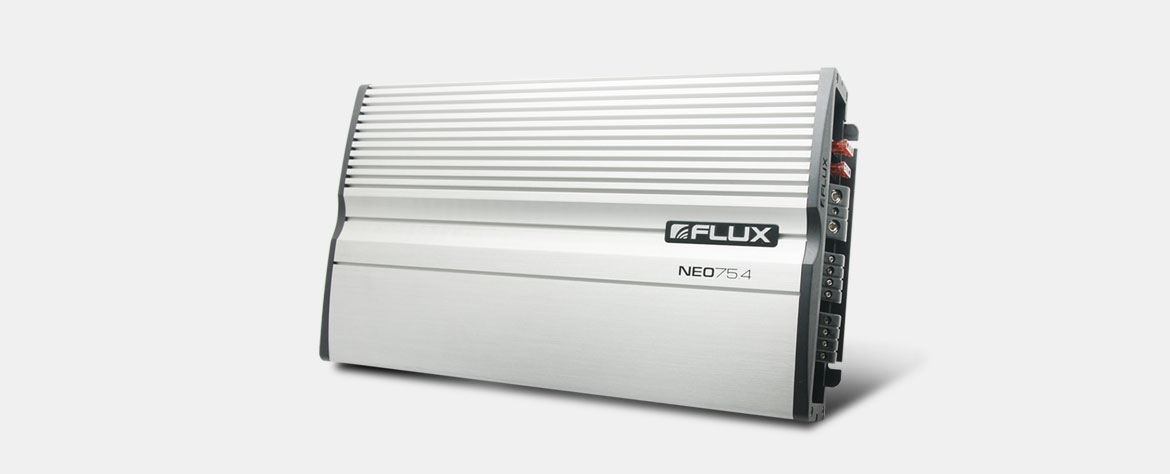

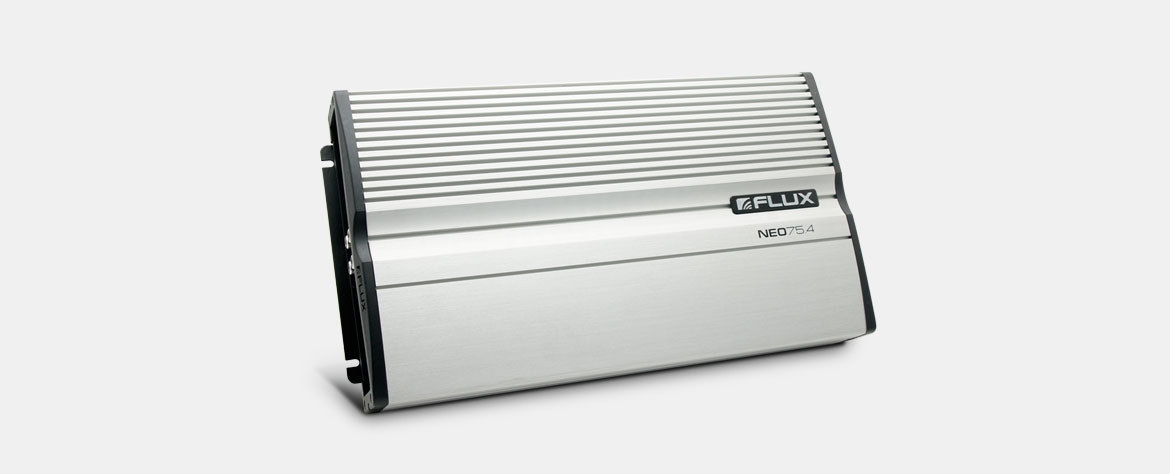

NEO- 75.4 is a class AB power amplifier designed to meet 4-channel audio systems that require 75 watts of power per channel at 4 Ohm load. Which is capable of being bridged to get more power. NEO-75.4 features level control, variable crossover for both low pass and high pass. Having a compact modern design, silver colored with black combination, the Neo amplifier is suitable for minimalist audio upgrades and OEM look with its relatively small dimensions.
The Neo-75.4 is able to provide good performance and sound quality at an reasonable price.

  • 4 channel bridgeable amplifier
  • Class AB power amplifier full mosfet
  • 75 watt RMS power @4ohm
  • built upon high grade component
  • integrated heatsink for better cooling
  • high grade interconnect RCA terminal
  • Super efficient unregulated power supply

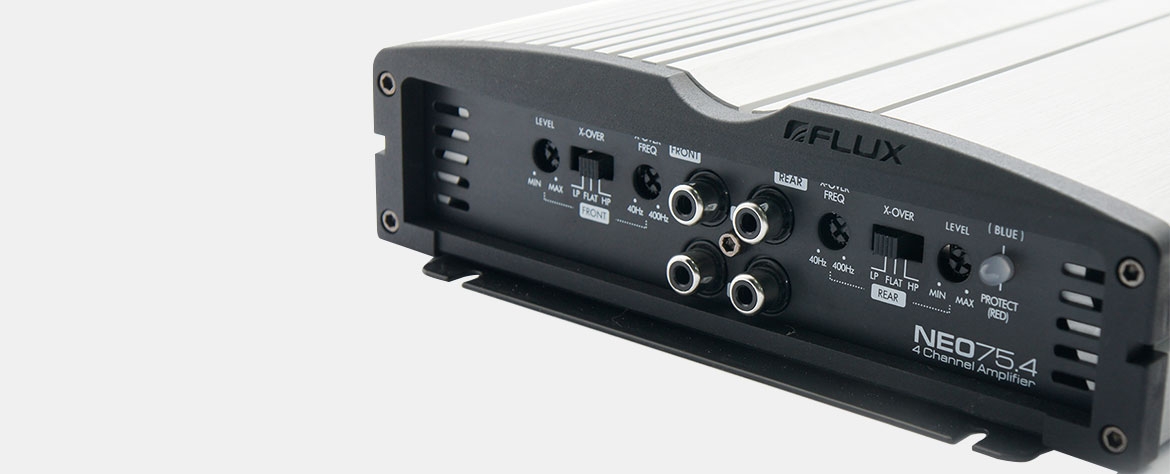

  • Crossover with switchable high pass & low pass filter

SPECIFICATION

Rated Power Output @4 Ohm
75W x 4 Channel
Rated Power Output @2 Ohm
150W x 2 Channel
Freq. Response
10-20 KHz
Input Sensitivity
100nv
Fuse Rating
40A x 2
Low Pass Crossover
40-400 Hz
High Pass Crossover
40-400 Hz
Mnimum Load Stereo
2 Ohm min
Minimum Load Mono
4 Ohm min
S/N Ratio
>80 dB
Dimension
51 x 335 x 180mm
