3 Way Speaker System

“Redefining Perfection” was the vision that inspired the creation of Signature. After years of constant research and development, Signature is finally here to turn the vision into reality. Offering audiophiles audio-quality that is completely out of this world.
.
SIGNATURE perfectly brings out every note and detail.

Feature Highlite:

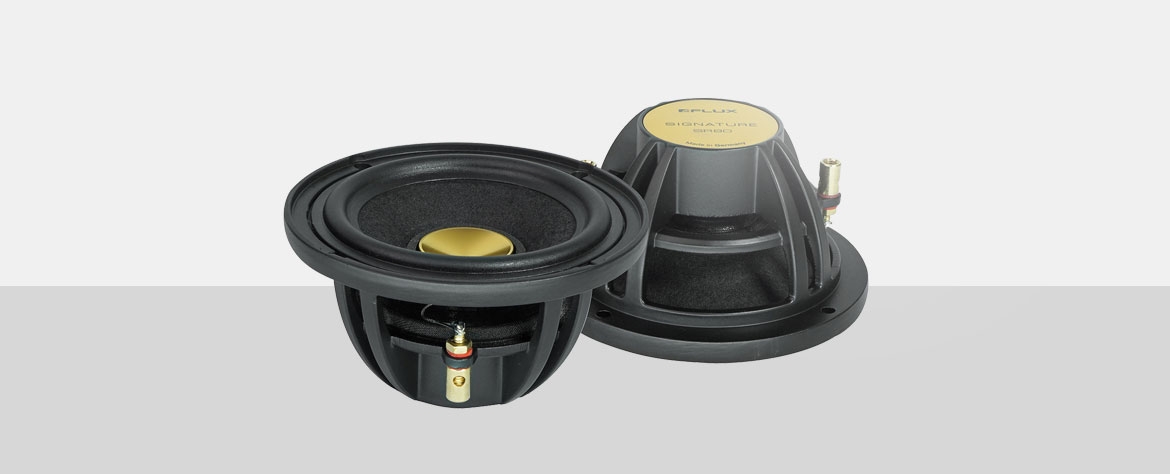

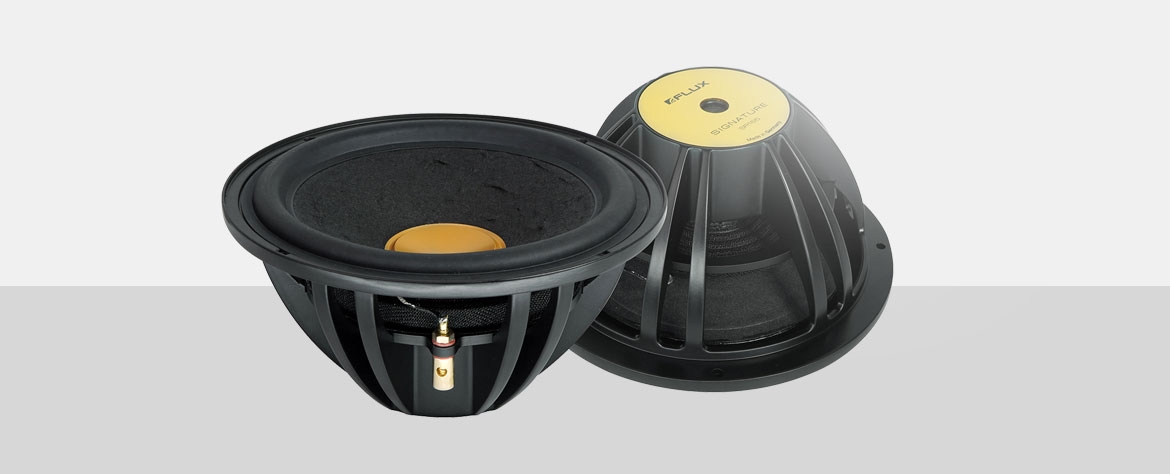

🔸Special Cone Material
Signature has a cone made of non press paper-based Coniferous Wood from Northern Europe. Paper was chosen because it is lightweight, yet highly responsive to movement, producing a clear and natural sound. The material is processed through special coating techniques to increase its strength and resistance to moisture and high temperatures inside the car cabin.

🔸Alumunium Die Cast Basket
The basket or speaker frame is designed with high quality die cast aluminum that is strong and lightweight, and equipped with air vents to reduce overheating. The basket is precision engineered to minimize internal resonances that can cause sound distortion. With its exclusive basket design, Signature can deliver deeper bass and more accurate punches.Alumunium Die Cast Basket.

🔸 Neodymium Magnet
The utilization of neodymium magnets provides greater magnetic strength. This enables faster and more precise sound response, especially for low and mid frequencies. The strong magnets also play an important role in maintaining sound stability at various volume levels.

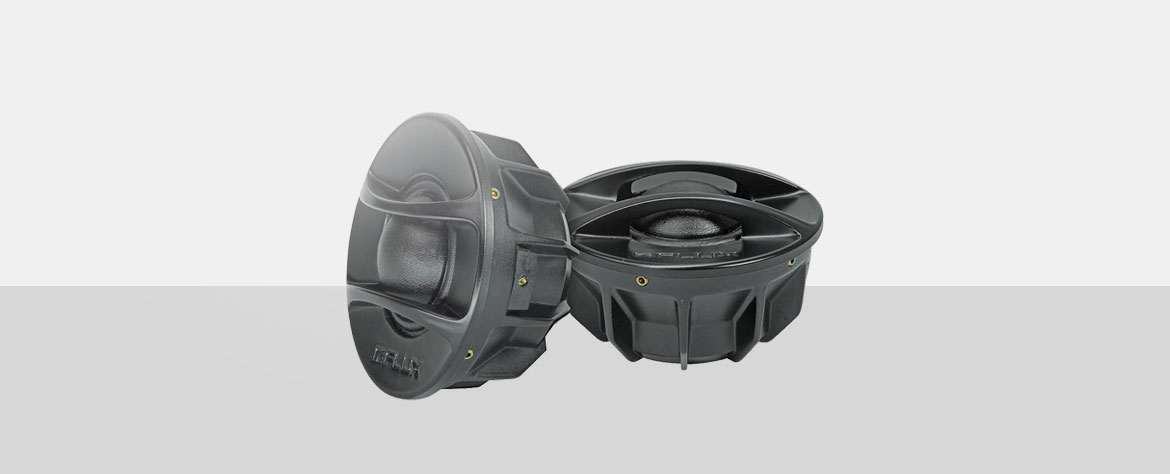

🔸Superior Tweeter
The Signature tweeter uses a silk dome material designed to perfectly reproduce high frequencies. The tweeter is capable of capturing fine sound details, providing an outstanding sensation of clarity and fidelity. With its large power handling capability, it also produces a wider dynamic range of sound.

SPECIFICATION

System Type
3 Way System
Impedance
3 Ohm
Maximum Peak Power Handling
100 Watt
Woofer & Midrange Cone
Non press paper-based coniferous wood
Woofer & Midrange Basket
Aluminium Die Cast
Woofer & Midrange Dust Cap
Reverse Shape Aluminium Gold Plated
Woofer Diameter
6.5 inch/165 mm
Midrange Diameter
3 inch/80 mm
Surround Material
High Density Butyl Rubber
Connector
Gold Plated
Tweeter V/C
28 mm
Tweeter Dome
Special coated Silk
Tweeter Case
Aluminium Housing

MANUAL & DATA SHEET
