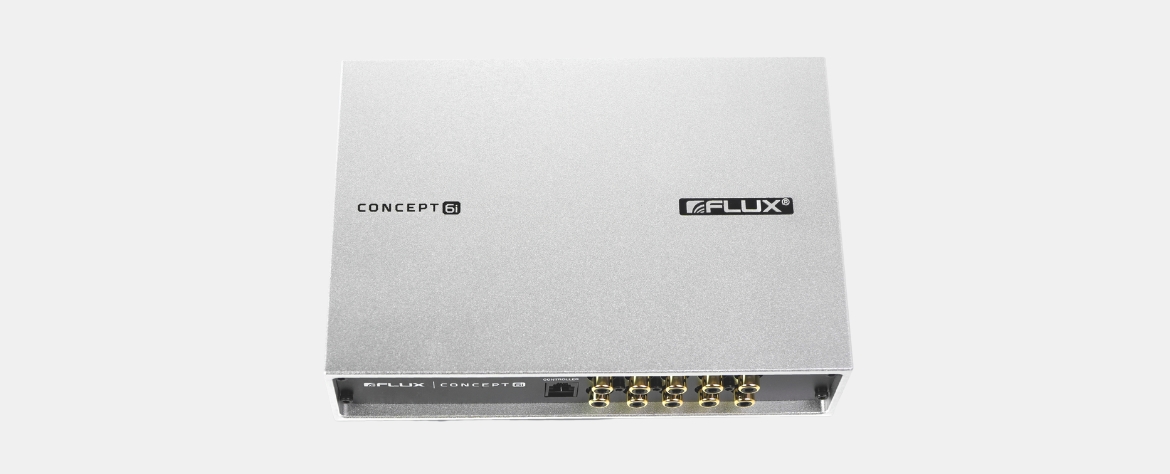

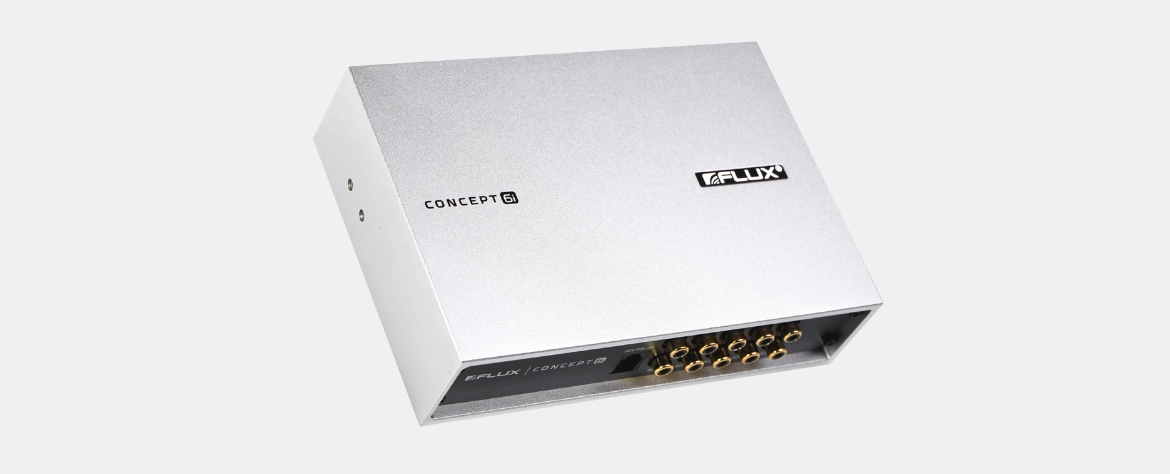

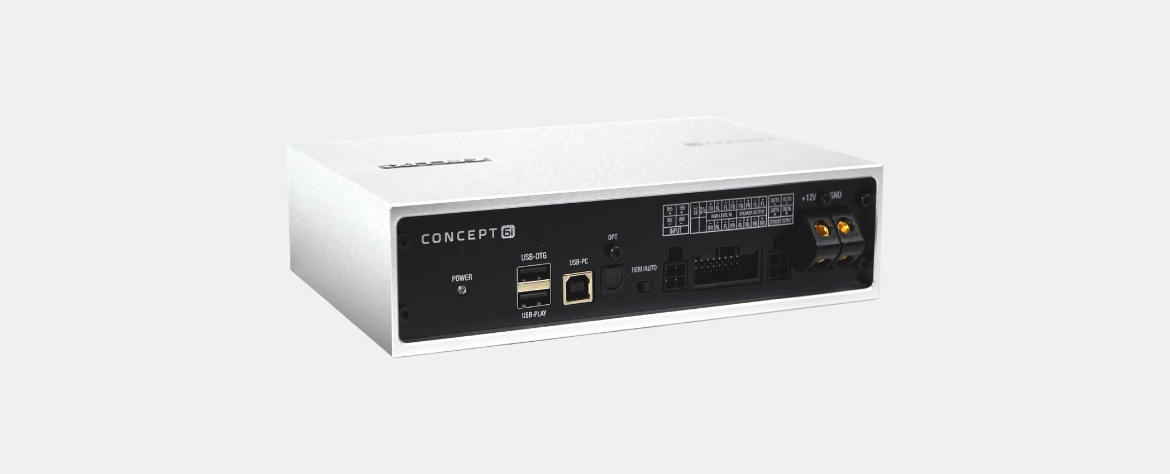

CONCEPT-6i

6 Channel DSP Amp

CONCEPT-6i

6 Channel DSP Amp

Flux Concept 6i is the continuation evolution of the Concept Series, built upon the proven foundation of Concept 4i. With expanded channel capability increased power output, and a more advanced DSP architecture, Concept 6i elevates the Concept philosophy delivering greater precision, stronger authority, and uncompromised control.

Support 6-channel high level, AUX, Optical, dan USB OTG (format audio: WAV, MP3, APE)
AKM high-performance DSP chip 269 MHz / 48 kHz / 24-bit
Built-in ADC/DAC (digital to analog conversion): 10–192 kHz / 24-bit
Output: 8 channel low-level RCA & 6 channel high-level
Power internal amplifier: 4 × 50 Watt + 2 × 80 Watt (4Ω, 14.4V, 1kHz, 1% THD)
31-Segment Equalizer Engineer
Software tuning professional

SPECIFICATION

Power Output

4CH × 50W + 2CH × 80W (4Ω, 14.4V, 1kHz, 1% THD)

High Input

6 channel

Output DSP

8 channel low-level RCA & 6 channel high-level

Working Voltage

DC 9V – 17V

Signal Divider Filter Type

Butterworth, Linkwitz, Bessel

Equalizer Output

31-Segment Equalizer Engineer

Power Output

200 × 140 × 50 mm

MANUAL & DATA SHEET

Manual
